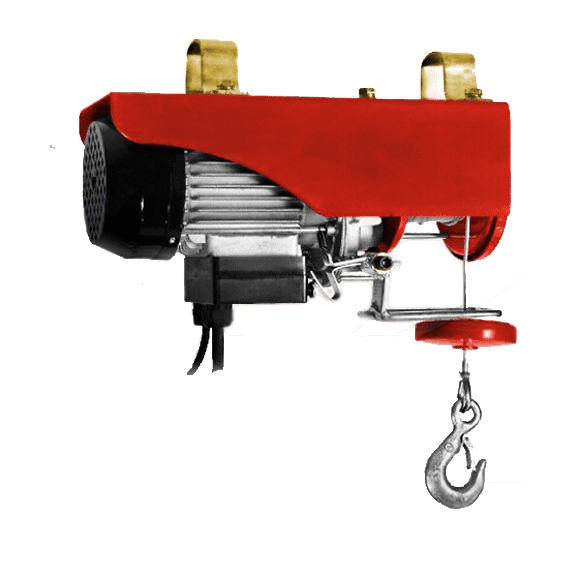

Electric winch 125 kg / 250 kg

SSXBTFDSS
13500
In stock

FREE delivery in Ljubljana and its surroundings! Orders are delivered within two working days

Delivery
Payments
Advantages
  • — Product warranty
  • — Possible return of products
  • — Different payment methods
  • — Wide selection of products

General description of electric winch 125 kg / 250 kg

The load capacity of the electric winch is 125 kg, and as much as 250 kg when connecting an additional pulley. The winch is equipped with a 500 W motor with automatic brake and overheating protection. The maximum lifting height of the electric winch is 11.5 m and 5.75 m when connecting an additional pulley. In addition to the electric winch, the package also includes a cable remote control for remote control of the winch, steel brackets for attaching the winch to the support pole, steel loop load during lifting, a pulley with a safety device to prevent the load from falling out of the hook, a steel hook with a safety device to prevent the load from falling out of the hook and an 11.5 m steel braid. The remote control, which can be operated with one hand, is equipped with a safety switch. The winch has an improved reducer that allows a longer product life.

Voltage
Electric motor (230 V / 50 Hz single-phase alternating voltage AC)
Power
500 W
Weight
11 kg
Mere paketa
350 x 190 x 140 mm
Warranty
12 mesecev
Power
500 W
Load capacity
125 kg
Load capacity when connecting an additional pulley
250 kg
Maximum lift height
11.5 m
Load lifting speed
8 m/min
Load lifting speed when connecting an additional pulley
4 m / min
Diameter of steel braid
Ø 3.00 mm
Maximum load of steel braid before rupture
> / = 600 kg
Length of steel braid
11.5 m
Protection class
IP54
Insulation class
KL
Remote control for remote winch control
Yes
Red emergency stop switch
Yes
Steel brackets for attaching the winch to the support rod
Yes
Automatic brake
Yes
Motor overheating protection
Yes
Steel loop to prevent load oscillations during lifting
Yes
Pulley with guard to prevent the load from falling out of the hook
Yes
Hook with guard to prevent the load from falling out of the hook
Yes
