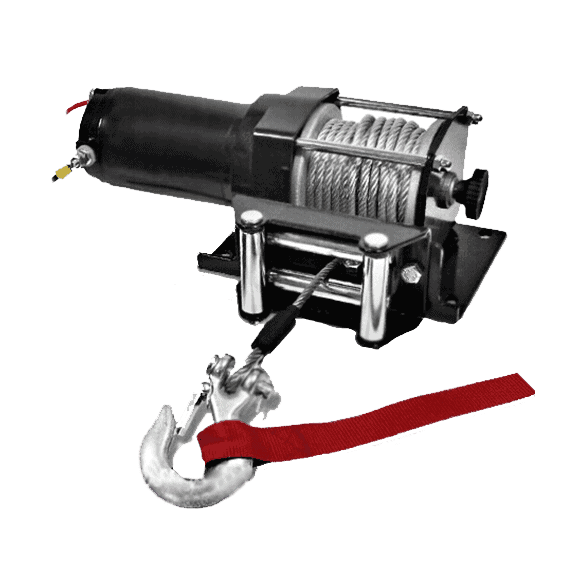

12 V electric winches 1360 kg

KLOPTTZUI
13500
In stock

FREE delivery in Ljubljana and its surroundings! Orders are delivered within two working days

Delivery
Payments
Advantages
  • — Product warranty
  • — Possible return of products
  • — Different payment methods
  • — Wide selection of products

General description 12 V electric winch 1360 kg

12 The electric winch features a robust and waterproof design for versatility. The electric winch can be easily screwed to a solid base with the supplied screws and a support steel plate with built-in holes. When properly installed and connected with added insulated cables (positive -plus and negative-minus cable) to the battery, the winch allows you to pull a load weighing up to 1360 kg or. 3000 Lbs

The winch is designed for horizontal pulling of a load of 1360 kg. This information is given for the first layer of wire on the drum. With each layer, the pull is reduced by 10%. So the horizontal pull of a load of 1360 kg is considered the first layer of braid on the drum. On the second layer, the load pull is reduced to 1224 kg. On the third layer, the load pull is reduced to 1088 kg, and so on. An unevenly wound braid further reduces the size of the load pull. The winch is not intended for vertical lifting. It is in no way intended to lift people. However, if we are to lift a load, we must also consider safety in addition to the method of winding. Taking these facts into account, an approximate estimate for load lifting applies, where we take a 5: 1 ratio. So a winch with a pull of 1360 kg has a lift of about 272 kg.

The winch motor operates in a 153: 1 power transmission. Two switches protect the winch from overloading and overheating. The winch has a 9.2 m long steel cable with a diameter of Ø 5.5 mm. The steel braid is made to prevent rotation around its axis when winding or unwinding. This is also helped by the four chrome-plated guide rollers, which lead the braid to the threaded drum more beautifully and more accurately when used. The steel wire (zajla) has a steel hook (carabiner) connected at the end, which contains a safety device to prevent the load from disconnecting or falling out of it. The winch is easily operated with an electric wired remote control, which is connected directly to the winch motor with a 300 cm cable. If necessary, with the help of a switch on the gearbox and the consequent activation of the clutch, manually pull or. develop a steel braid with a winch. The winch is ideal for nature lovers, sailors, hunters, foresters, farmers, 4x4 vehicles, adventurers, etc.

Voltage
Electric motor (12 V DC)
Weight
9,4 kg
Mere paketa
300 x 105 x 105 mm
Warranty
12 mesecev
Power
750 W
Maximum load with mass with single braid (without pulley)
1360 kg
Steel braid winding speed
3.2 m/min
Diameter of steel braid
Ø 5.5 mm
Length of steel braid (zajle)
9.2 m
Length of insulated plus (red) cable for connection to the battery (power supply)
3 m
Length of insulated minus (black) cable for connection to the battery (power supply)
3 m
Wired remote control cable length for remote winch control
Approximately 300 cm
Wired remote control
Yes
Possibility of electric development and winding of the winch by pressing the button of the remote control
Yes
4 guide chrome rollers for easy and smooth development and winding of the platen
Yes
Waterproof construction
Yes
Overheat protection switch
Yes
Steel braid that prevents rotation around its axis when winding or unwinding
Yes
Overload protection
Yes
Supporting steel plate with built-in holes (holes) for attaching the winch to the base
Yes
Mounting screws, for attaching the winch to the base
Yes
Steel hook (carabiner) with guard to prevent the load from disconnecting or falling from the hook
Yes
Battery connection cables (red - plus, black - minus)
Yes
Possibility of permanent mounting on all solid objects (car, wall, four-wheeler, ATV, SUV, trailer ...)
Yes
