3” submersible deep well monoblock pump 40 l/min 115 m 750 W 230 V

Write a review
3 SQIBO-0,75___I/230V/000573
23000 €
In stock
The text has been machine translated.

The pressure switch is charged additionally in addition to the basic product.
+ −
Add to wish list Ask a question
Delivery
Payments
Advantages
  • — Product warranty
  • — Possible return of products
  • — Different payment methods
  • — Wide selection of products
Immersion depth (max.)115 m Flow2400 l/h = 40 l/min DiameterØ 75 mm

Description of 3” submersible monoblock pump 40 l/min 115 m 750 W 230 V

75mm deep well displacement pump SQIBO. The pump is mainly made of stainless steel, e.g. housing, bolts, inlet/outlet and rotor. Depending on the customer’s requirements, the pump is equipped with power cables of 25 m length.
Due to the capacitor built into the motor, the pump is ready for installation immediately after unpacking. The pump is equipped with thermal protection mounted in the motor winding. The pumps are recognized by customers for their robust design and attractive price.

Application

Supply of water to single-family houses and holiday houses

Operating conditions

• Maximum liquid temperature 40°C
• Maximum ambient temperature 40°C
• Class B Insulation
• Operating mode - continuous
• Protection - IP68

Materials

• Housing: stainless steel AISI 304
• Shaft and rotor: stainless steel AISI 304
• Screw: stainless steel AISI 304
• Stator: NBR
• Motor: oil cooling
• Mechanical seal: ceramics/Sic
• Rotational speed of the electric motor: 2850RMP

Voltage
Electric motor (230 V / 50 Hz single-phase alternating voltage AC)
Power
750 W
Weight
11,06 kg
Warranty
12 mesecev
Amperage
3 A
Rotational speed of the electric motor
2800 rpm
Fluid flow rate (maximum pumping speed)
65 liters per minute
Immersion depth (max.)
115 m
Flow
2400 l/h = 40 l/min
Diameter
Ø 75 mm
Fluid rise (height difference)
26 m
Diameter of the outlet pressure pipe connection on the electric pipe submersible pump
Nominal diameter Ø 25 mm (1 inch - 1" - 1 inch), according to standard DIN 2440:1978-06;
Connection
25 Ø mm (1 inch - 1" - 1 1/2 inch)
Diameter of the outer casing of the electric submersible pump
Ø 95 mm
Bore diameter required to insert electric submersible pump
Ø 100 mm
Pumping
From deep wells, wells and cisterns and free-standing reservoirs
Lubrication
Is not necessary
Outer casing made of stainless steel submersible part of electric submersible pipe pump
Yes
Quick and easy installation of a submersible drainage sump pump
Yes
Airtight seal of the electric motor of the submersible drainage sump pump
Yes
Additional connection with external thread for screwing to the submersible pump on one side and ribbed relief for a firmer connection to the pressure or suction pipe with a clamp on the other side of the connection
Yes

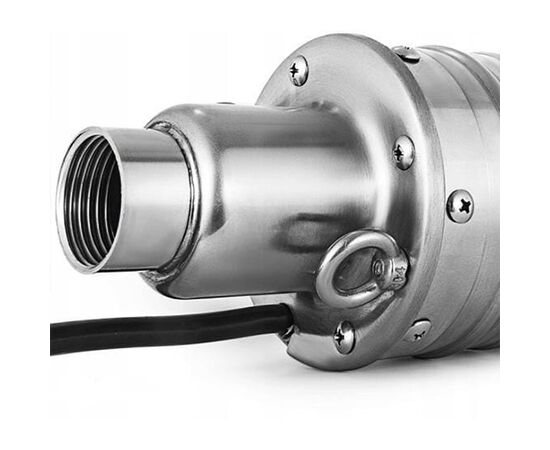

Two steel lugs for easy connection of steel rope or chain for easy raising and lowering of the submersible pump from and into the well
Yes
Suitability of a submersible drainage sump pump for operation in hydrophore systems
Yes
