Multi-stage deep well pump 67 l/min 168 m 2200 W 102 mm 230 V
Please sign in so that we can notify you about a reply
General description of multi-stage deep well pump 67 l/min 168 m 2200 W 102 mm 230 V
With a deep well pump we pump water from deep wells. The submersible deep well pump can be submerged to a depth of 20m and successfully pumped water. The pump is intended for pumping groundwater. It can also be used for groundwater pumping for water-to-water heat pumps. The pump has 2200 W, which means that it pumps 4,000 liters of water from an immersion depth of up to 20 meters in one hour and raises it by a height difference of 168 meters. The pump has an external on / off switch. The pump is made of stainless steel.
Voltage
Electric motor (230 V / 50 Hz single-phase alternating voltage AC)
Power
2200 W
Weight
25 kg
Warranty
12 mesecev
Immersion depth (max.)
168 m
Flow
4000 l/h ≈ 67 l/min
Pressure
16.8
bar
Diameter
Ø 98 mm
Immersion depth
20
m
Water temperature (max.)
35 ° C
Pump dimensions
(Ø 98 x 1252) mm
Dimensions
(1610 x 180 x 120) mm
Connection
32 mm (1 1/4")
Maximum grain size in a liquid
0.3 mm
Length of electric cable
20 m
Housing type
Stainless steel
Number of wheels in the pump
25
Suitability for pumping drinking water
Yes
Pump components built of stainless steel
Yes

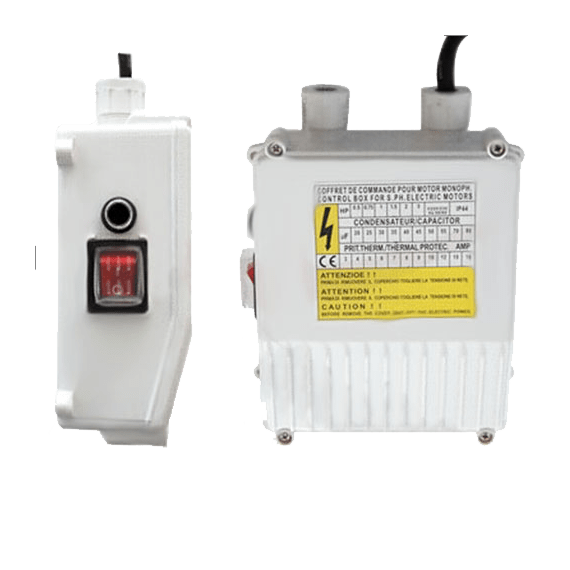

External switch
Yes
Primer prikaza montaže črpalke
Prikaz delovanja potopne cevne črpalke
