Pipe submersible pump 750 W 3300 L / hour 100 m 100 mm
- Minimum bore diameter for inserting a submersible pump 100 mm
- Connection pressure pipe connection diameter 25 mm (1 inch)
- Diameter of the submersible pump 100 mm
- pumping speed 55 liters per minute (3300 l / h)
- High quality
- Power 750 W
Description of pipe submersible pump 750 W 3300 L / hour 100 m 100 mm
With a submersible pipe pump, water from 100 meters deep wells can be pumped and poured.
When inserting an electric submersible pump into a borehole, it must also be taken into account that the actual diameter of the electric submersible pump casing is only about 100 mm, which means that it can be inserted into boreholes or openings with a diameter of 100 mm.
When switched on, the electric submersible pump will fill the pressure pipe with liquid and start pumping the liquid into the provided container or pipe system.
The electric submersible drainage sump pump can be connected to 230 V 50 Hz voltage. The motor power of the submersible drainage sump pump is 600 W. The electric motor lifts the liquid by 100 meters of height difference. .

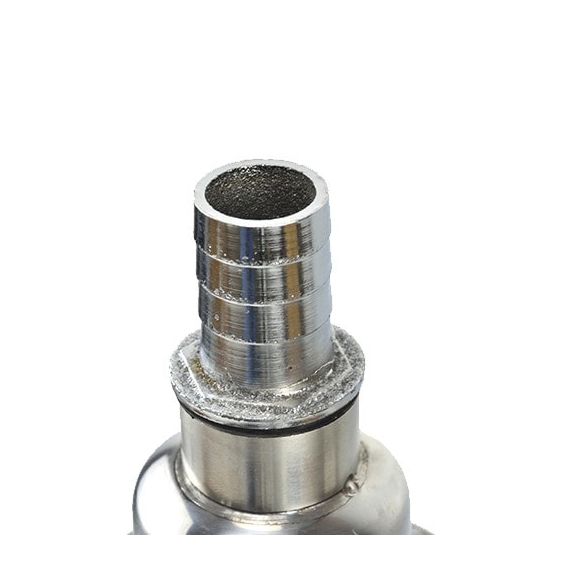

To connect the inlet suction pipe, the submersible drainage sump pump has an internal threaded thread Ø 40 mm (1 inch - 1 "- 1 inch), according to DIN 2440: 1978-06. An additional connection can be connected to the submersible drainage sump pump with with an external thread for screwing on the submersible drainage sump pump on one side and a ribbed relief for a firmer connection to the pressure or suction pipe with a clamp on the other side.The maximum fluid flow rate of the submersible drainage sump pump is 55 liters per minute.
The electric submersible drainage sump pump is suitable for pumping clean water from wells up to 100 meters deep. The fluid can be pumped from deep wells, wells and cisterns, and free-standing tanks. Submersible drainage sump pump suitable for operation in hydrophore systems. At the beginning of pumping the liquid, watering the suction pipe is not required. Lubrication of the submersible pump is not required. The electric motor of the submersible pump is sealed. This means that water intrusion into the electric motor of the submersible pump is completely prevented.
The robust submersible drainage sump pump is manufactured in accordance with the European recognized standard (certificate) CE.
Primer prikaza montaže črpalke
