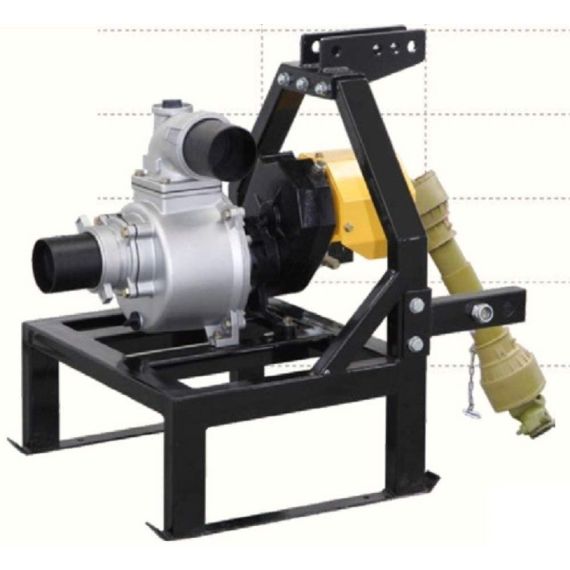

Tractor cardan water pump 1000 L / min
Tractor cardan water pump 1000 L / min
The tractor cardan water pump is intended for drainage, irrigation and flood protection. Dirty water and slurry can be pumped with the PTO pump. The maximum suction capacity of the water pump is 7 meters.
The water pump is mounted on a painted steel frame with a tractor three-point hitch system. A steel frame extension can be installed to adapt the pump to different brands and models of tractors. The water pump is driven by a PTO shaft (PTO).
The required PTO shaft speed of the tractor to drive the water pump is 540 rpm. The pump drive speed is transmitted in a gear ratio of 6.6 via the PTO shaft (shaft included). The minimum required power of the tractor to drive the water pump is 11 kW (15 hp) and the maximum power of the tractor is 92 kW (125 hp). The PTO shaft is included with the pump.
Technical characteristics of the cardan water pump:
Minimum tractor power: 11 kW (15 Horsepower)
Maximum power of the track: 92 kW (125 Horsepower)
PTO shaft speed required: 540 rpm
PTO shaft diameter: 6 teeth 1-3 / 8 Zoll (Cole - Inches) (DN 35, 48 mm)
Reducer: single-stage reduction
Reduction ratio: 1 to 6.67
Lubrication: SAE 90 transmission oil
Cardan lubrication: Lithium grease
Maximum pump head: 30 m
Pump flow: 1000 L / min
Pump outlet diameter (pressure hose connection): 3 inch (DN 80 - 90 mm)
Pump inlet diameter (suction hose connection): 3 inch (DN 80 - 90 mm)
Maximum suction capacity of the pump water: 7 m
PTO speed / pump speed: 540/3600 rpm
Weight: 50 kg
