4” submersible deep well monoblock pump 45 l/min 60 m 750 W 230 V
Please sign in so that we can notify you about a reply

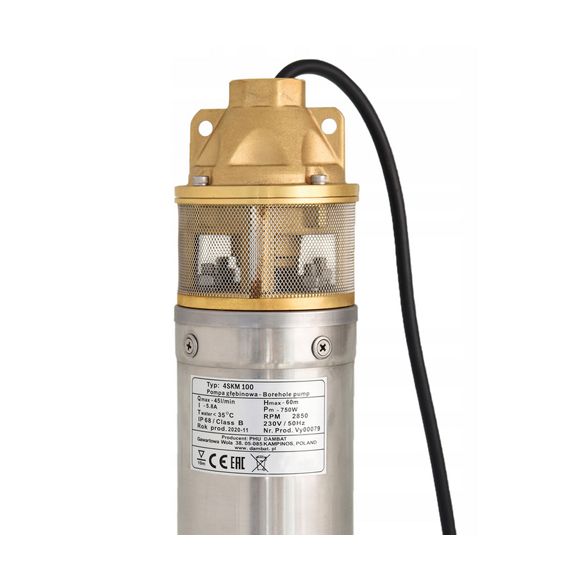

Description of 4” submersible monoblock pump 45 l/min 60 m 750 W
4” (98 mm diameter) multi-stage deep well peripheral pump. Due to the small diameter, the pump can be installed in well with 25 cm diameter pipes. Depending on the customer requirements, the pump can be equipped with standard 15 m cable with a plug. Due to the capacitor built into the motor, the pump is ready for installation immediately after unpacking. The pump is supplied with thermal protection mounted in the motor winding.
Application
Supply of water to single-family houses and holiday houses. Irrigating gardens.
Operating conditions
- Maximum liquid temperature 35°C
- Maximum ambient temperature 35°C
- Class B Insulation
- Operating mode - continuous
- Protection - IP68
Materials
- Housing: stainless steel AISI 304
- Shaft and rotor: stainless steel AISI 304
- Impeller: Brass
- Venturi tube: stainless steel
- Mechanical seal: Carbon-SIC/Sic
- Motor: oil cooling
- Rotational speed of the electric motor: 2850 RMP
Technical details: 4” submersible deep well monoblock pump 45 l/min 60 m 750 W 230 V
Voltage:
Electric motor (230 V / 50 Hz single-phase alternating voltage AC)
Power:
750 W
Weight:
16 kg
Warranty:
12 months
Amperage:
5,8 A
Rotational speed of the electric motor:
2850 rmp

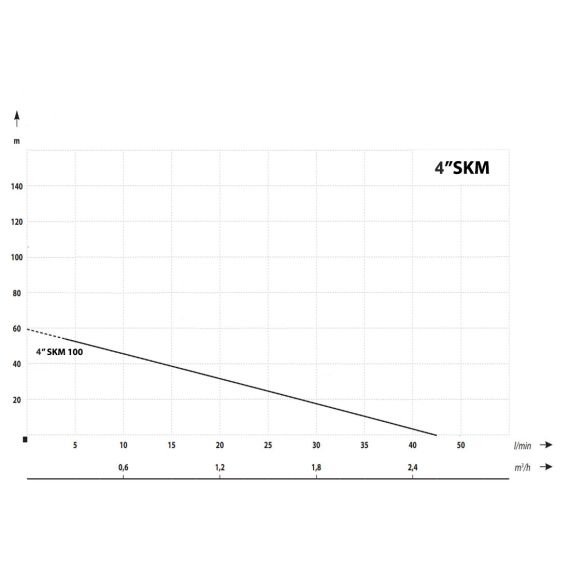

Fluid flow rate (maximum pumping speed):
45 liters per minute
Immersion depth (max.):
60 m
Flow:
2700 l/h = 45 l/min
Pressure:
6 bar
Diameter:
Ø 98 mm
Water temperature (max.):
35 °C
Maximum ambient temperature :
35 °C
Pump dimensions:
(Ø 98 x 530) mm

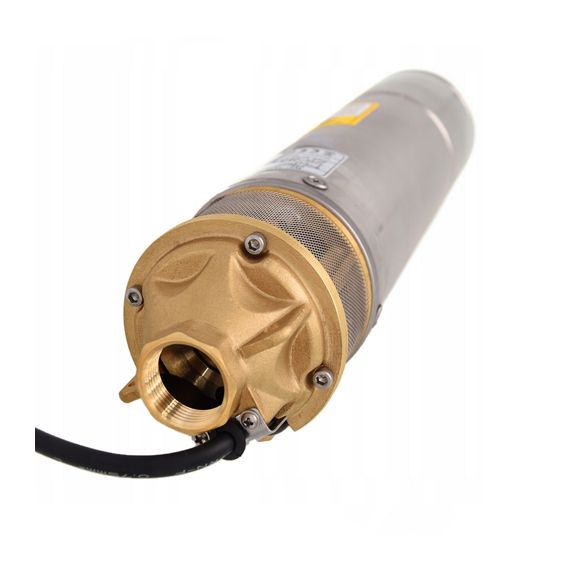

Diameter of the outlet pressure pipe connection on the electric pipe submersible pump:
Nominal diameter Ø 25 mm (1 inch - 1" - 1 inch), according to standard DIN 2440:1978-06;
Connection:
25 Ø mm (1 inch - 1" )
Diameter of the outer casing of the electric submersible pump:
Ø 98 mm
Length of electric cable:
15 m
The diameter of the outer casing of the electric submersible pump in inches:
4"
Bore diameter required to insert electric submersible pump:
Ø 100 mm
Housing type:
Stainless steel AISI 304
Shaft and rotor:
Stainless steel AISI 304
Impeller:
Brass
Venturi tube:
Stainless steel
Mechanical seal:
Carbon-SIC/Sic
Motor:
Oil cooling
Protection class:
IP68
Class:
B Insulation
Operating mode :
Continuous
Pumping:
From deep wells, wells and cisterns and free-standing reservoirs
Lubrication:
Is not necessary
Outer casing made of stainless steel submersible part of electric submersible pipe pump:
Yes
Quick and easy installation of a submersible drainage sump pump:
Yes
Airtight seal of the electric motor of the submersible drainage sump pump:
Yes
Additional connection with external thread for screwing to the submersible pump on one side and ribbed relief for a firmer connection to the pressure or suction pipe with a clamp on the other side of the connection:
Yes

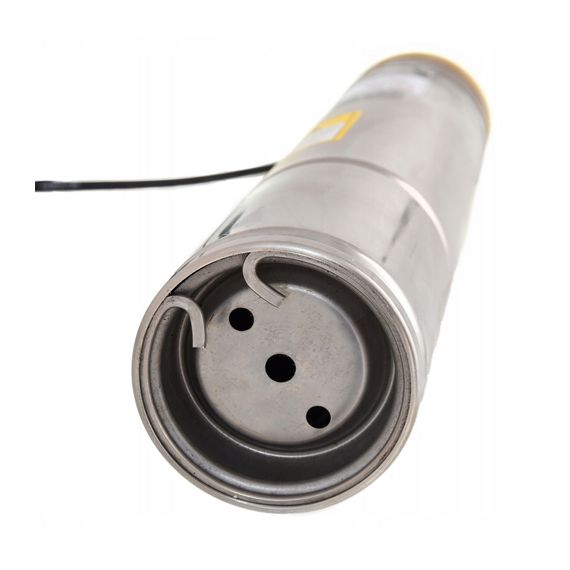

Two steel lugs for easy connection of steel rope or chain for easy raising and lowering of the submersible pump from and into the well:
Yes
Suitability of a submersible drainage sump pump for operation in hydrophore systems:
Yes
